Parable of the data¶

Consider this common scenario: you’ve collected some data from an experiment, and you want to analyze it. First, you have to associate each measurement with its corresponding experimental variables . Maybe you store the resulting dataset in a spreadsheet. Or, maybe you load a data file from an instrument into a Jupyter notebook and you save the condition information in a separate variable.

Now, suppose you want to compare these data to some you collected previously, or maybe to data collected on a different instrument, or from a collaborator. To do that, you’ll need to compare experimental conditions. The different datasets are all stored in files with different formats. In order to join them all together, you end up making a specialized workflow for each separate dataset. Only after tedious data wrangling are you ready to start doing actual analysis.

We can make our lives a little easier if we use common standards to format our data. With predictable structure, it becomes much easier to handle datasets from different experiments and groups. In this note, we’ll introduce the platemap for annotating multiwell plate data, and show you how you can use it to build shareable datasets and improve your analysis workflow.

Representing experimental data¶

In an experiment, we try to understand how input variables are transformed into output variables. The output variables are all the measurements we take of our samples. The input variables are made up of: (1) every independent variable that we directly manipulate in the experiment, and (2) any additional experimental and process variables that we don’t directly control but might still affect the output variables.

A simple way to represent such an experiment is with a table where each row represents all the inputs and outputs. In a common convention known as the “long” format, each row contains one output measurement and the corresponding set of input variables for that sample (Figure 1). For experiments with multiple measurements per sample (e.g., reads at multiple wavelengths, or timeseries with multiple time points), there is one row for each of these measurements, all with identical values in the input columns.

Platemaps link experimental inputs and outputs¶

However, the instruments that record data from an experiment typically don’t include all of your experimental inputs in their output files, just a smaller subset of identifiers (e.g. Well, such as “A1”). To make the full dataset, we need to associate the full set of experimental inputs with the measurement outputs. We also want to ensure that the data from any given experiment can be compared to data from another without confusion (i.e., wells on different plates are different samples!). To do this, we can make a smaller table that maps the identifier labels from the instrument to a set of corresponding experimental conditions and metadata that disambiguate measurements across experiments. Since many biological experiments are conducted using multiwell plates, we call this smaller table a platemap.

How to make a platemap¶

In brief, a platemap tells you the geography of your experiment: what’s in your plate and where it is.^[1] Each row represents one well of the plate, and each column describes a different aspect of the content in that well (e.g., DNA concentration).

A properly formatted platemap has five (5) required columns that uniquely describe each well: Well, Date, Experiment, Name and Type. It may have as many optional columns as you’d like to provide additional information about each experimental condition.

Below, we’ll show you an example of a plate and a corresponding platemap, then go into more detail about the platemap columns.

Example

Here is a simple example for a small plate with 6 wells:

Required columns¶

Four of the required columns serve to uniquely identify the contents of each well across experiments in a dataset:

• Well: the alphanumeric coordinate of the well (e.g., A1, B2)

• Date: the date the experiment was conducted

• Experiment: a name briefly describing the experiment

• Name: a brief description of the contents of the well

The fifth required column, Type, is not an identifier but indicates the role of this well in this experiment. Type should be one of

• Sample

• Standard

• Blank

• Control, Positive Control or Negative Control

Optional columns¶

A platemap may also have any number of additional, optional columns that provide useful metadata about the contents of the wells. These should indicate the experimental variables that you have direct control over (e.g., DNA concentration) as well others you think may influence the experiment’s outcome (e.g., identity or lot number of your DNA template, reaction volume, experimentalist, etc.). You may include other columns to facilitate analyzing your final dataset, such as which fluorophore/reporter type is used in each measurement. See Using optional platemap columns for analysis below for an example.

Using platemaps¶

Once your platemap has been made, it can support the analysis and sharing of your experimental data. In this section, we’ll see some example applications.

Associating experimental conditions with measurements¶

When using an instrument like a plate reader to make fluorescence measurements, the resulting data files are instrument-specific and typically don’t allow you to include many kinds of information needed to analyze your data or to make your data legible to collaborators. Typically you’ll just have the measurement information and the wells on the plate they correspond to.

To format your data, first read your instrument data into a table with one row per measurement. You can then “join” or “merge” your table with the platemap, using the Well column to match input variables to output measurements (visualized in Figure 2 above). In Python, if your data are loaded into a Pandas DataFrame called data, this can be done in a fairly straightforward way:

import pandas as pd
platemap = pd.read_csv('path/to/platemap.csv')
data = data.merge(
    platemap, how='left',
    left_on = '<Well column in data>', #rename to your "Well" column in instrument data
    right_on = 'Well' # corresponding "Well" column in your platemap
)

Now your data object can be analyzed using tools designed for other long-format datasets, and can be easily concatenated (e.g., with pd.concat()) with other datasets for joint analysis.

from cdk.analysis.cytosol import platereader as pr

data, platemap = pr.load_platereader_data(
    data_file='path/to/datafile.txt',
    platemap_file='path/to/platemap.csv',
    platereader="biotek-cdk"
)

Using optional platemap columns for analysis¶

By including information about experimental conditions into the platemap, we can easily filter data based on different experimental variables to understand how each affects the results. Labels about measurement conditions, like different modalities or read types, can be used the same way.

As a simple example, when visualizing data using Seaborn, a column can be used as a facet when plotting data:

sns.relplot(data, x = 'Time', y = 'data_normalized',
            hue = 'tRNA ID')

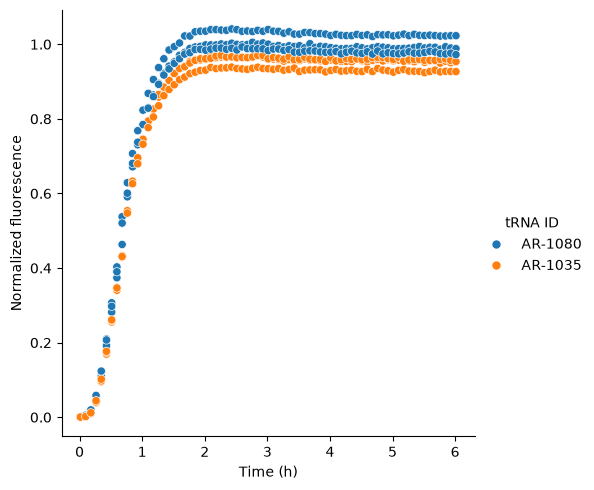

Applying this to sample data (Figure 4), we have a hint of a batch effect from different lots of tRNA.

Source:Jupyter Notebook
