Overview¶

To improve protein yield and synthesis rate in the PURE cell-free system, this work focused on the critical roles of magnesium and energy regeneration. By synthesizing existing literature and analyzing model predictions, we developed a primary hypothesis: the “Unified Chelation Model.” This model posits that polyphosphate is a master regulator of the translational environment through its ability to chelate magnesium. This provides a mechanistic explanation for the differential performance of standard Creatine Phosphate/Creatine Kinase (CP/CK) versus alternative Polyphosphate Kinase (PPK) systems and also accounts for unexpected model predictions. An experiment is proposed to directly test this model’s predictions by systematically varying magnesium concentrations across three distinct energy system configurations.

Workspace Data¶

See workspace/workspace_data.csv for the full exported dataset.

Results¶

The investigation into optimizing the PURE system culminated in a top-ranked, unifying hypothesis that provides a mechanistic framework for understanding the system’s core biochemistry. This “Unified Chelation Model” posits that polyphosphate’s primary role is to regulate the availability of magnesium ions, a single function with profound downstream effects on protein synthesis. The following sections detail this hypothesis, the evidence supporting it, and an experimental plan designed for its direct validation.

Detailed Findings¶

Executive Summary¶

This research aimed to optimize the PURE (Protein synthesis Using Recombinant Elements) system by maximizing protein yield (fit_param_0) and synthesis rate (fit_param_1), targeting a 5x improvement over the baseline. The investigation focused on the interplay between key components: Ribosome, Magnesium acetate, and two distinct energy regeneration systems—the standard Creatine Phosphate/Creatine Kinase (CP/CK) and an alternative Polyphosphate Kinase (PPK) system. The IGOR process, synthesizing literature and analyzing existing data, culminated in a unified core hypothesis: Polyphosphate’s primary role is as a potent magnesium chelator. This mechanism is proposed to regulate the ionic environment for translation, enabling a high-yield state in PPK-driven systems at magnesium levels that would otherwise be inhibitory, and also explaining a surprising AI model prediction of viable protein synthesis even in the absence of any dedicated energy regeneration enzymes. The top-ranked hypothesis suggests Polyphosphate is a master regulator of the translational environment.

Top-Ranked Hypotheses¶

1. Unified Chelation Model for Polyphosphate’s Role in Both Enzymatic and Non-Enzymatic Energy Systems¶

This hypothesis integrates the winning ‘chelation’ mechanism with the surprising AI prediction of high yield in the absence of traditional energy regeneration. It posits that Polyphosphate’s fundamental role is to act as a potent magnesium (Mg2+) chelator, creating a buffered pool of bioavailable Mg2+. This single mechanism has a dual effect: 1) In a PPK-driven system, it enables a high-yield regime by establishing a different optimal Mg2+:Ribosome stoichiometry that prevents inhibition at high Mg2+ levels. 2) In a system lacking both PPK and Creatine Kinase, this same chelation effect is profound enough to create a stable ionic environment that protects ATP from hydrolysis/precipitation and maintains minimal ribosomal function, thereby explaining the model’s prediction of a surprisingly viable ‘energy-regeneration-free’ system. This unified model proposes that Polyphosphate is not just a substrate for PPK but a master regulator of the ionic environment for translation, whose effect is synergistic with PPK but also potent enough to be impactful on its own. Initial Testable Question: In a 3-way comparison of energy systems (CP/CK, PPK/PolyP, PolyP only), does increasing Magnesium from 6 mM to 20 mM cause catastrophic failure in the CP/CK system, a moderate baseline yield in the ‘PolyP only’ system, and the highest yield in the PPK/PolyP system, thus demonstrating Polyphosphate’s dual role as both a baseline stabilizer and a synergistic substrate?

Final rationale:

This hypothesis was top-ranked because it provides a foundational and unifying mechanistic framework that addresses the core research goal. Its central ‘chelation’ mechanism was consistently favored in debates for its broad explanatory power. It successfully integrates the well-supported concept of magnesium’s critical role with the function of alternative energy systems, and crucially, it also provides a plausible explanation for a novel, counter-intuitive AI model prediction (high yield with no energy regeneration enzymes). This synthesis of literature, domain knowledge, and AI-driven discovery makes it the most robust and comprehensive hypothesis generated.

Key supporting evidence:

• Debate Rationale: The chelation mechanism was deemed more foundational and broadly applicable than competing hypotheses.

• Debate Rationale: This hypothesis incorporates and explains a surprising AI prediction, a trait highly valued for its potential for pure discovery.

• Finding: The standard creatine phosphate/creatine kinase (CP/CK) energy regeneration system is hypothesized to be self-limiting due to the accumulation of inorganic phosphate. (Kim and Swartz, 2000; Schoborg et al., 2014)

2. Polyphosphate as a Scaffolding Agent for a Non-Enzymatic Translation Hub¶

Building on the novel insight that high yield is possible without PPK or Creatine Kinase, this hypothesis proposes a more radical mechanism than simple energy buffering. It posits that at high concentrations, Polyphosphate and Magnesium do not just interact in solution, but form a coacervate or gel-like scaffold. This scaffold acts as a primitive, phase-separated ‘translation hub’ that locally concentrates ribosomes, ATP, and other essential components. This micro-environment sustains protein synthesis not through enzymatic ATP regeneration, but by physically preventing ATP-Mg precipitation, reducing spontaneous ATP hydrolysis, and increasing the effective concentration of the translational machinery through molecular crowding. The system works because Polyphosphate is actively organizing the reaction in space, creating a protected and concentrated environment that drives the reaction forward chemically, independent of dedicated regeneration enzymes. Initial Testable Question: Using light scattering or fluorescence microscopy, can we observe the formation of distinct phase-separated droplets or high-molecular-weight complexes in a PURE system containing high concentrations of Polyphosphate and Magnesium (but no PPK/CK)? Does the appearance and stability of this phase directly correlate with protein yield under these conditions?

Final rationale:

This hypothesis was highly ranked due to its exceptional novelty, stemming directly from a counter-intuitive AI model prediction suggesting protein synthesis is possible without dedicated regeneration enzymes. The debates valued its potential for ‘pure discovery.’ The evolution of the hypothesis from a simple ‘buffer’ to a more radical ‘physical scaffolding’ or ‘phase separation’ mechanism represents a significant leap, proposing a new physical basis for PURE system function that is both testable and has major implications if proven correct.

Key supporting evidence:

• Debate Rationale: The hypothesis was lauded for its origin in a surprising AI prediction, highlighting its potential for a paradigm shift.

• Tournament Pattern: The debates favored hypotheses with novel, proactive mechanisms, and this evolution proposes a radical physical organization role for Polyphosphate.

Proposed Experimental Plan¶

Objective¶

To test the ‘Unified Chelation Model’ by systematically evaluating the performance of three different PURE system energy configurations across a range of magnesium concentrations. The goal is to determine if Polyphosphate acts as a master regulator of the ionic environment, stabilizing the system in the absence of regeneration enzymes and synergizing with PPK at high magnesium concentrations that are inhibitory to the standard CP/CK system.

Variables & Controls¶

Protocol Steps¶

1. Prepare Master Mixes: Prepare a main PURE system master mix containing all common components (amino acids, tRNAs, translation factors, ribosomes, DNA template for GFP, etc.) at fixed concentrations, leaving out the energy regeneration components and magnesium.

2. Prepare Energy Solutions: Create three distinct, concentrated energy stock solutions corresponding to the three ‘Energy System’ conditions outlined in the variables table.

3. Setup Reaction Plate: In a 96-well plate, aliquot the main master mix into each well.

4. Create Magnesium Gradient: Add varying amounts of a Magnesium Acetate stock solution to the wells to create the specified concentration gradient (6 mM to 20 mM) for each energy system condition.

5. Initiate Reactions: Add the corresponding energy solution to each well to initiate the transcription-translation reaction. Ensure each condition (e.g., CP/CK at 6mM Mg) has at least three technical replicates.

6. Incubation and Measurement: Place the plate in a plate reader incubated at 37°C. Measure GFP fluorescence kinetically over a period of 4-6 hours.

7. Data Analysis: For each condition, calculate the final protein yield (fit_param_0) from the endpoint fluorescence and the synthesis rate (fit_param_1) from the maximum slope of the kinetic curve.

Key Metrics¶

• Primary Metric: A 3-way comparison of the Yield (fit_param_0) and Rate (fit_param_1) curves as a function of Magnesium concentration for each of the three energy systems.

• Hypothesis Confirmation: The hypothesis will be supported if we observe:

  1. CP/CK System: Yield and rate peak at low-to-mid magnesium concentrations and then sharply decline (catastrophic failure) at high concentrations (>14 mM).

  2. PolyP Only System: A low-to-moderate but stable yield is maintained across the entire magnesium range, demonstrating a baseline stabilizing effect.

  3. PPK/PolyP System: Yield and rate are highest overall and continue to increase or remain high at magnesium concentrations that were inhibitory to the CP/CK system.

Generated Experimental Suggestions¶

Maybe include a list of how each GES corresponds to a key metric? I’m not sure if that’s the right way to understand it.

References¶

• Improved Cell-Free RNA and Protein Synthesis System, Li J, 2014, PLoS ONE

• A Single Polyphosphate Kinase-Based NTP Regeneration System Driving Cell-Free Protein Synthesis, Wang PH, 2019, ChemRxiv

• Optimizing protein expression in the One-Pot PURE System: Insights into reaction composition and translation efficiency, Chen, L, 2024, bioRxiv

• ATP Regeneration from Pyruvate in the PURE System, Garenne, D, 2021, ACS Synthetic Biology

• Cell-Free PURE System: Evolution and Achievements, Lu, Y, 2022, International Journal of Molecular Sciences

Dead Ends¶

• Hypothesis on Conditional Magnesium Optimum with Alternative Energy Regeneration: This initial hypothesis was rejected during the debates because its proposed mechanism—that the PPK system’s benefit comes from avoiding inhibitory magnesium-phosphate precipitation—was considered more reactive and less foundational than the proactive ‘chelation’ mechanism proposed by Architect 1. It represented a more incremental scientific step and had less unifying explanatory power for the full range of observed and predicted phenomena.

Figures¶

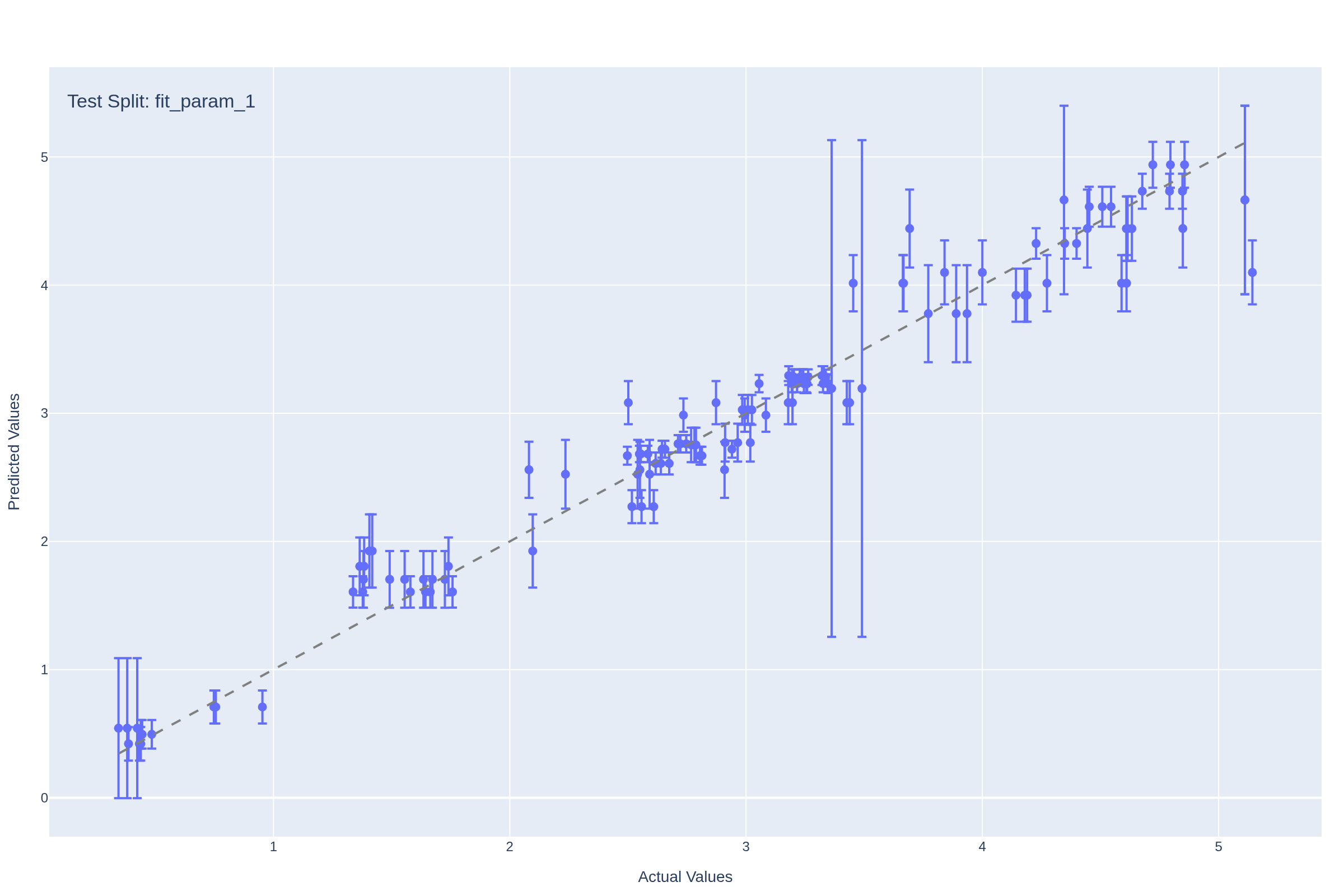

Chelation mechanism — synthesis rate (fit_param_1)

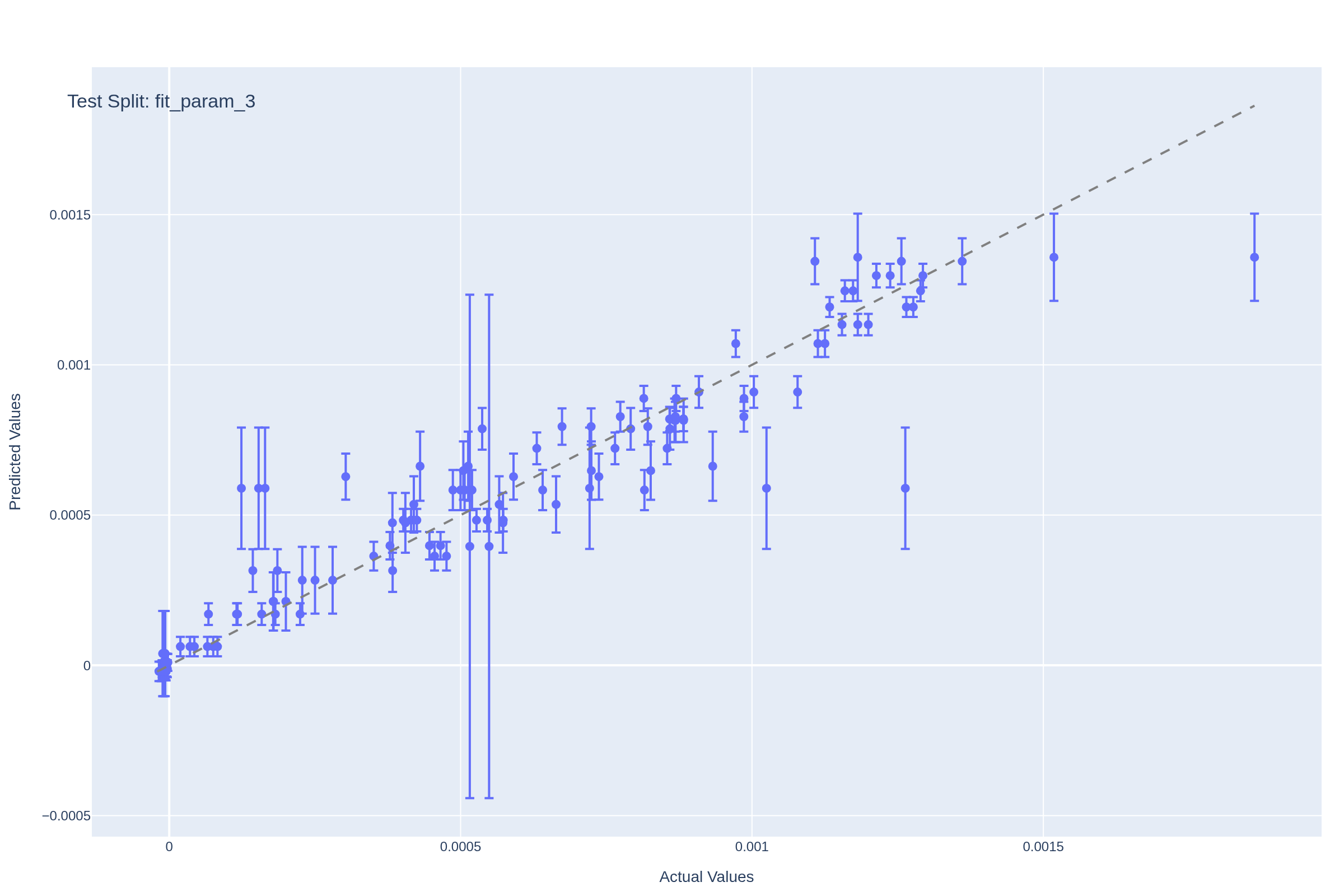

Hypothesis incorporation — kinetic parameter (fit_param_3)

Creatine phosphate standard — synthesis rate (fit_param_1)

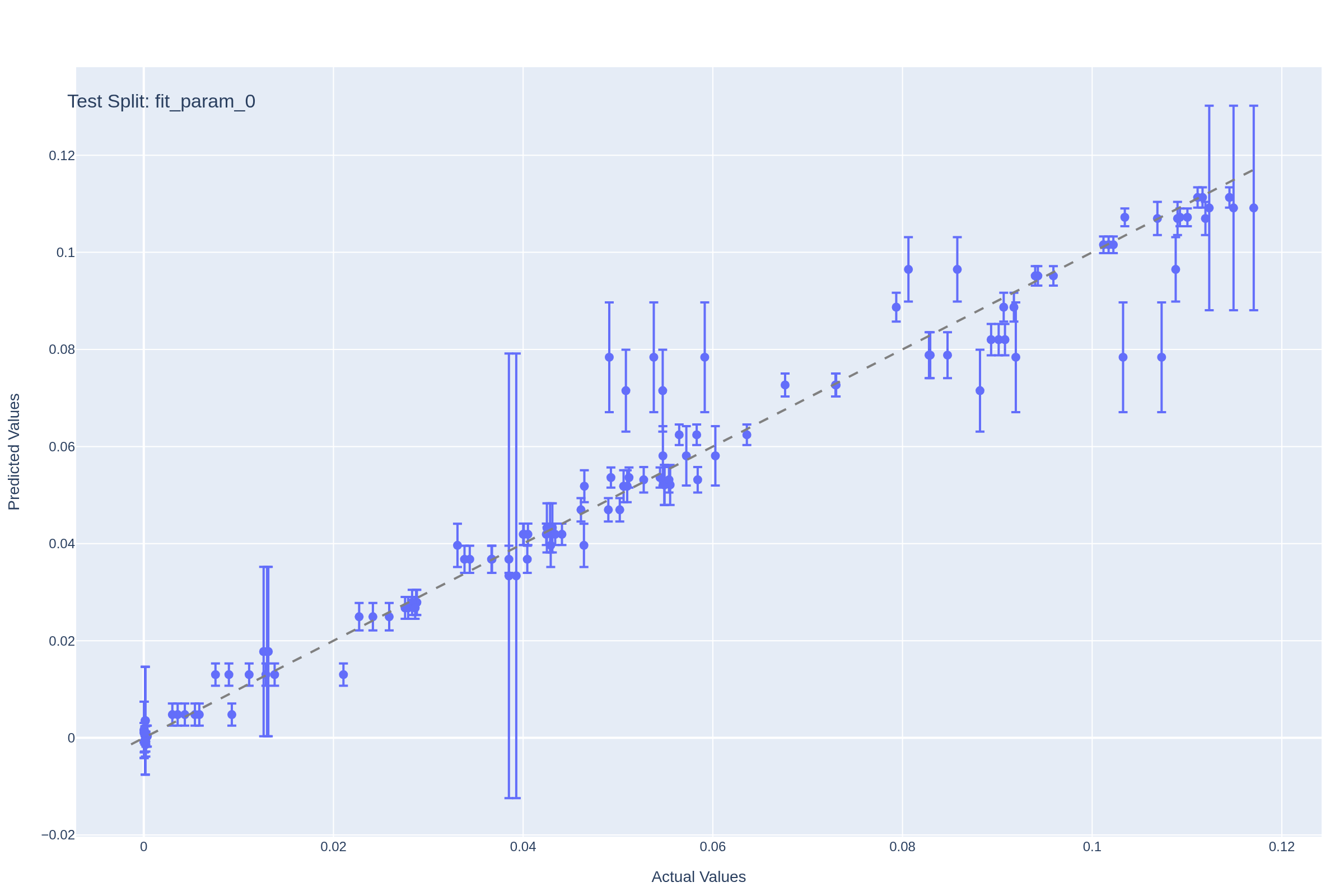

PPK2 single enzyme — final protein yield (fit_param_0)

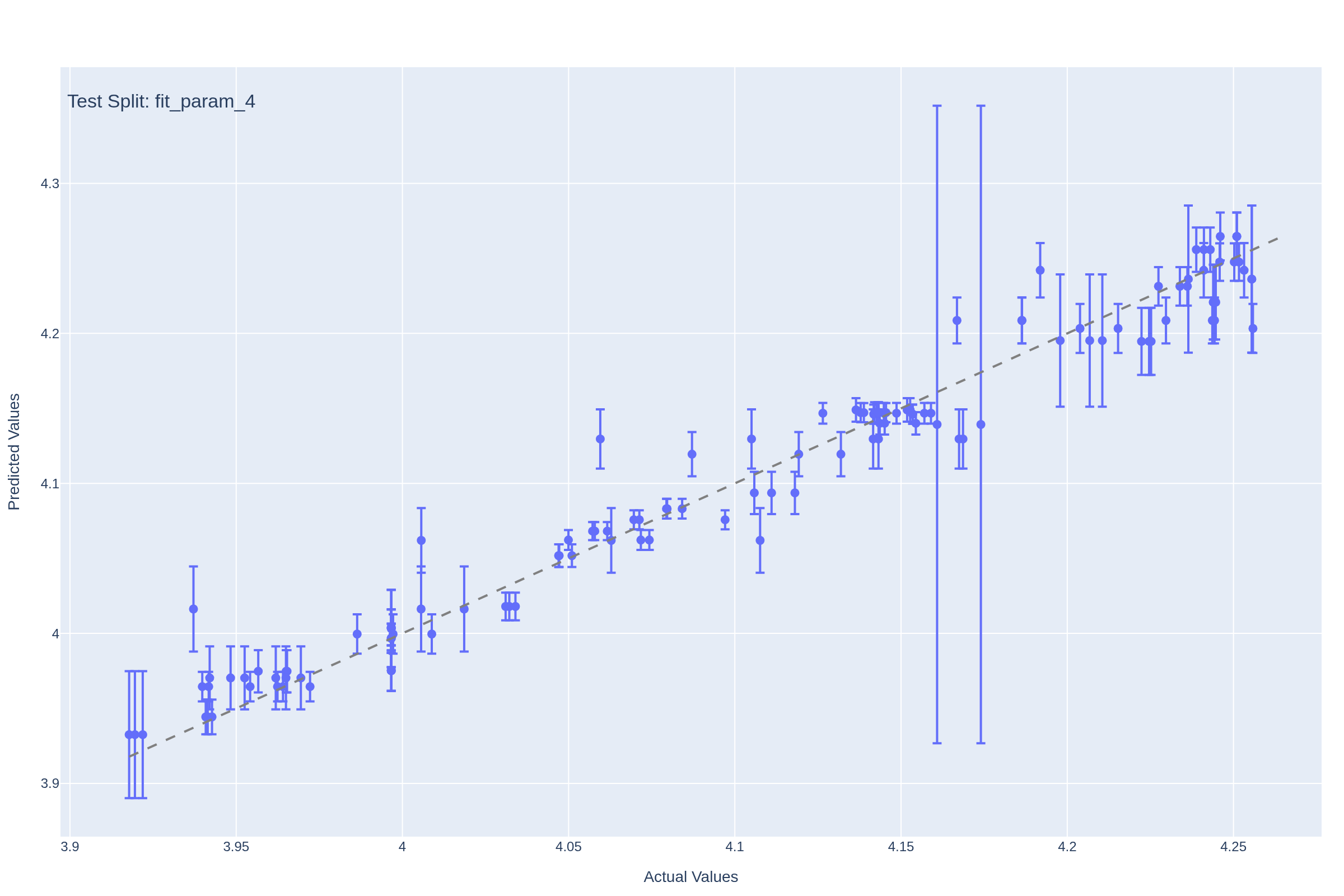

Unified chelation model — kinetic parameter (fit_param_4)

Conclusions and next steps¶

This work has refined a complex problem space into a concise and testable hypothesis: the “Unified Chelation Model.” This model proposes that polyphosphate acts as a master regulator of the PURE system’s ionic environment by chelating magnesium, a mechanism which elegantly explains both documented phenomena and novel, AI-driven predictions. The proposed three-way experimental comparison of energy systems across a magnesium gradient provides a clear path to validating this hypothesis. Confirmation would represent a significant step forward in rationally designing and optimizing cell-free protein synthesis systems.

This synthesis centers on claim-h1-unified-chelation-model-for-polyphosphat, claim-h2-polyphosphate-as-a-scaffolding-agent-for.

Grounding evidence includes ev-h1-1-debate-rationale-the-chelation-mechanism, ev-h1-2-debate-rationale-this-hypothesis-incorpo.
