Analyze time-series data from platereader experiments.

1. Setup and Data Retrieval — Group B, Jul 23

try:
    import cdk
    print("CDK already installed, skipping installation and restart.")
except ImportError:
    !pip install nucleus-cdk==0.6.0rc1 -q
    print("\nInstallation complete. Restarting runtime to refresh dependencies...")
    import os
    os._exit(0)
CDK already installed, skipping installation and restart.

%%writefile drive_utils.py
import os
import re
import gdown

def get_drive_file_id(url):
    """Extracts file ID from a Google Drive URL."""
    match = re.search(r'/d/([a-zA-Z0-9_-]+)', url)
    if match:
        return match.group(1)
    return None

def download_from_drive(files_info, destination_dir):
    """
    Downloads files from Google Drive.

    Args:
        files_info (list): List of dicts with 'url' and 'filename'.
        destination_dir (str): Local path to save files.
    Returns:
        dict: Mapping of filenames to local paths.
    """
    if not os.path.exists(destination_dir):
        os.makedirs(destination_dir)

    paths = {}
    for item in files_info:
        url = item['url']
        filename = item['filename']
        dest = os.path.join(destination_dir, filename)
        file_id = get_drive_file_id(url)

        if file_id:
            gdown.download(id=file_id, output=dest, quiet=True)
        else:
            gdown.download(url, output=dest, quiet=True)

        paths[filename] = dest
    return paths
Writing drive_utils.py

import os
import re
import sys
import shutil
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Custom CDK and utility imports
from cdk import logging
from cdk.instruments import platereader as pr
from drive_utils import download_from_drive

# Initialize logging
log = logging.setup_logging(logging.INFO)

print("Setup and imports consolidated successfully.")
INFO:cdk.logging:Logging initialized

Setup and imports consolidated successfully.

# Define file information
files_to_download = [
    {
        "url": "https://drive.google.com/file/d/1oJTTNOlV_ZL-vgCKI7gukyuKDQphuUb2/view?usp=sharing", # Replace the link with your data file link. Make sure the file permissions are set to 'Anyone with a link' can 'view'.
        "filename": "raw_data.txt"
    },
    {
        "url": "https://drive.google.com/file/d/1ywYHIGPjkor5DC1RYZc7b5JUk-AR4PL9/view?usp=sharing", # Replace the link with your platemap file link. Make sure the file permissions are set to 'Anyone with a link' can 'view'.
        "filename": "platemap.csv"
    }
]

# Local destination
local_data_dir = "/content/data"

# Execute simplified download
downloaded_paths = download_from_drive(files_to_download, local_data_dir)

# Update global variables for downstream use
data_file = downloaded_paths["raw_data.txt"]
platemap_file = downloaded_paths["platemap.csv"]

print(f"Files ready at:\n- Data: {data_file}\n- Platemap: {platemap_file}")
Files ready at:
- Data: /content/data/raw_data.txt
- Platemap: /content/data/platemap.csv

2. Load and Analyze Data

# Load data
result = pr.load_platereader_data(
    data_file=data_file,
    platemap_file=platemap_file,
    platereader="biotek" # options: "biotek"
)
INFO:cdk.instruments.platereader.loaders.biotek:BioTek optics source (filter/monochromator) is inferred and may be incorrect.
INFO:cdk.instruments.platereader.loaders.biotek:Found 1 plate blocks
INFO:cdk.instruments.platereader.loaders.biotek:Parsing plate block 1
INFO:cdk.instruments.platereader.loaders.biotek:Read metadata section, found 1 read block(s).
WARNING:cdk.instruments.platereader.loaders.biotek:Data column contains non-numeric values.
INFO:cdk.instruments.platereader.loaders.biotek:Parsed 2 segment(s) successfully.
INFO:cdk.instruments.platereader.loaders.biotek:Found 0 segment(s) that could not be associated with existing read data.

The output is a list of PlateReaderResult objects; if you did more than one read on the plate reader, the results will be in separate objects.

print(result)
PlateReaderResult with the following 2 blocks:
0: (1022, 35) kinetic read with reads: GFP:485,528 (Fluorescence) (Plate 'Plate 1')
1: (56, 33) endpoint read with reads: Max V [GFP:485,528] (Fluorescence), R-Squared [GFP:485,528] (Fluorescence), t at Max V [GFP:485,528] (Fluorescence), Lagtime [GFP:485,528] (Fluorescence) (Plate 'Plate 1')

Here there were two reads with different gains but the same excitation/emission spectrum, on one plate. If we want just the GFP-Gext read, this corresponds to block index 1, so we can extract that block by indexing:

desired_index = 0
data = result[desired_index]
data
(1022, 35) kinetic read with reads: GFP:485,528 (Fluorescence)

Plot Raw Curves

data.plot(style='Type')
<seaborn.axisgrid.FacetGrid at 0x7bb03956d4f0>
<Figure size 925.5x500 with 1 Axes>

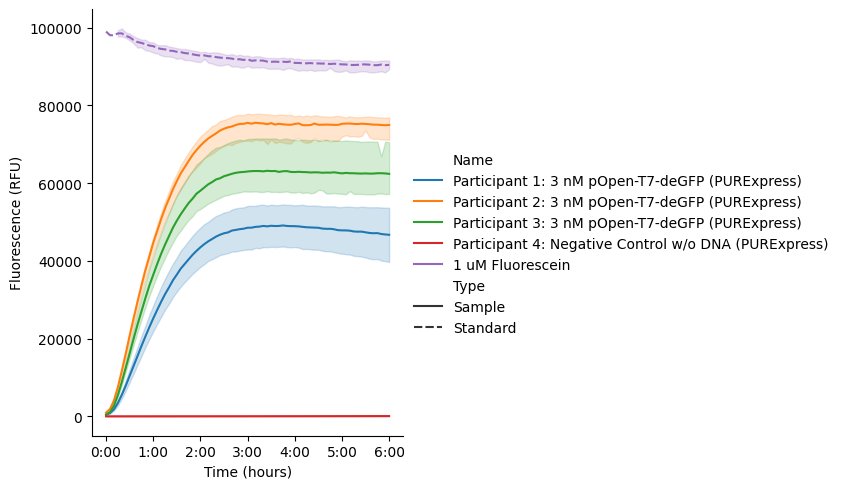

We can see that the standard (here, HPTS) is stable and can be safely used for normalization.

Normalize Data

Now, use data.normalize('<standard name>') to normalize your data. This will calculate the average over a time window at the end of the experiment (by default, 1 hour), then divide all data by the mean of that window-average across all wells with the same Name (defined by your platemap).

data = data.normalize('1 uM Fluorescein')

Now replot your curves to see them normalized:

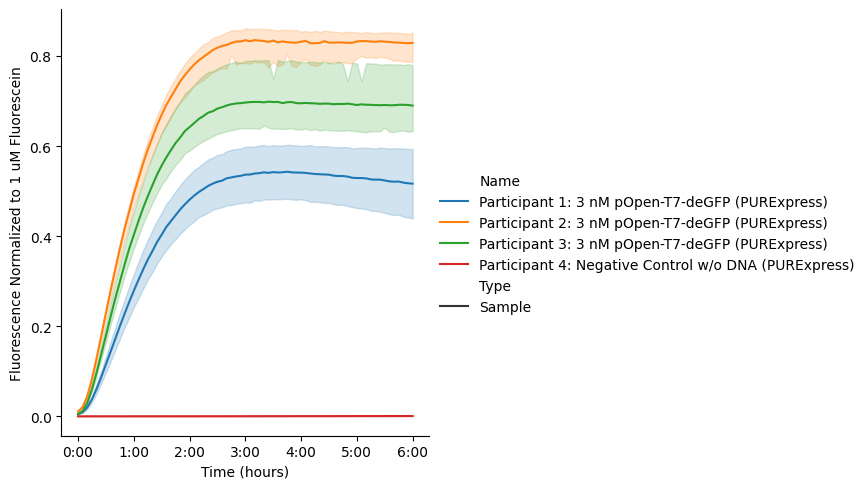

g = data.plot(style='Type', exclude_types=['Standard'])
<Figure size 925.5x500 with 1 Axes>

If you want to change the time window over which you calculate the average, you can use the window argument:

Kinetic Analysis

See the DevNote on kinetic analysis for more details.

Metrics extracted:

  • Maximum velocity: Maximum rate of fluorescence increase (slope at inflection point)

  • Lag time: Time to reach the exponential phase

  • Steady-state: Final fluorescence level

  • Time-to-completion: Time it takes to reach 95% of asymptote

  • Drift: Rate of signal decay or increase after steady-state

  • R²: Goodness of fit; “Good Fit” is True if R2≥0.95R^2 \geq 0.95

# Perform kinetic analysis using sigmoid_drift model
kinetics = data.fit_kinetics()
kinetics.summary
Loading...

Visualize Fits

g = kinetics.plot(col="Well")
# g = kinetics.plot() # call this to visualize across replicates

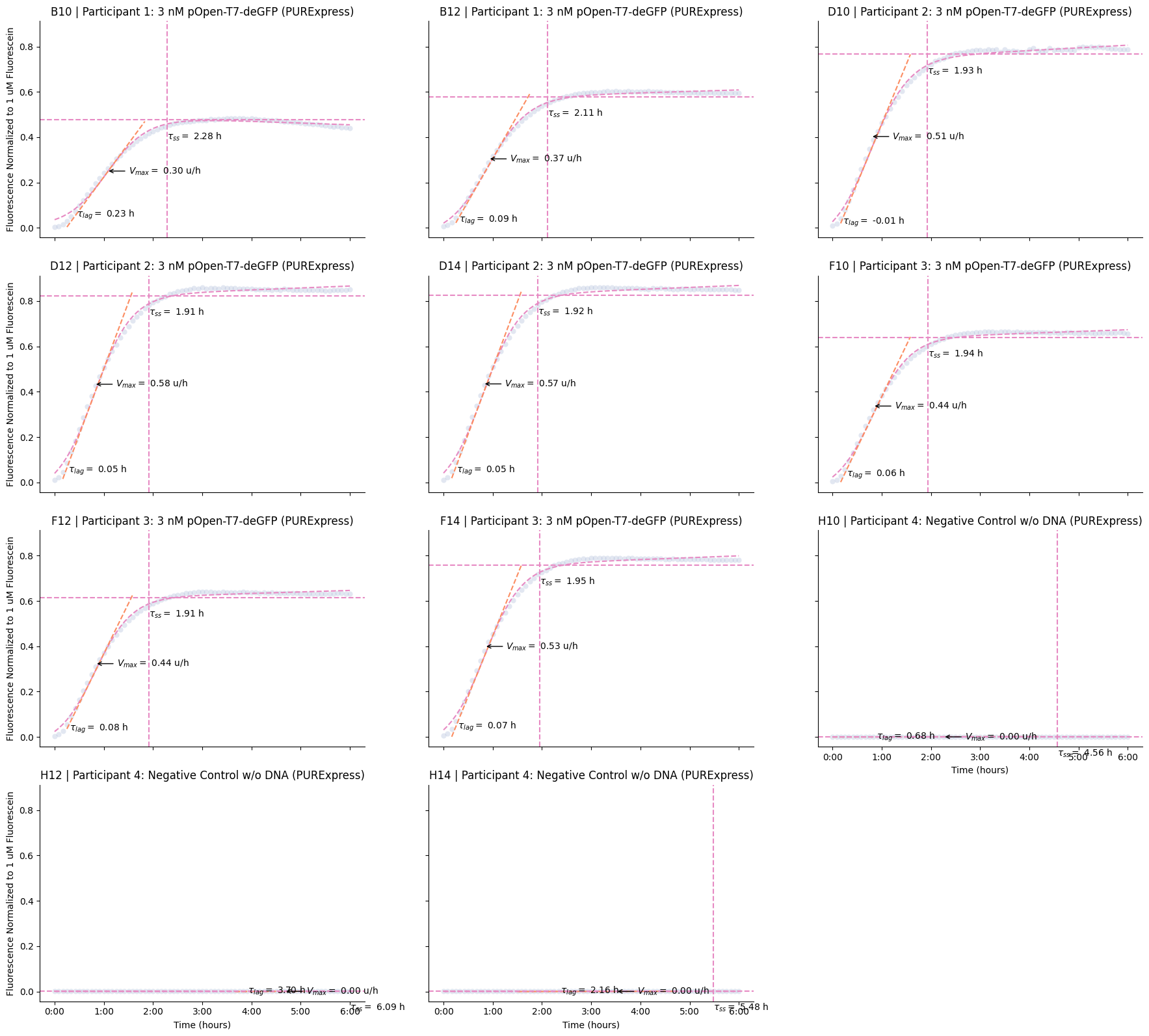

<Figure size 1800x1600 with 11 Axes>

Summary Plots

g = kinetics.plot_summary()

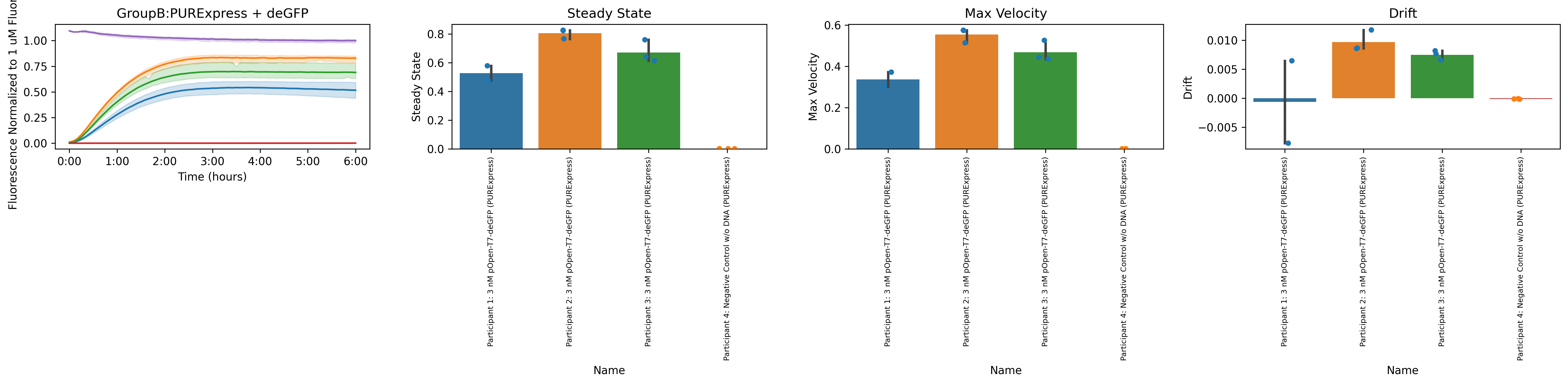

<Figure size 6000x1500 with 4 Axes>

Key Metrics Explained

1. Steady-State Level (Steady State, Data)

  • The final fluorescence value reached by the reaction

  • Represents the total amount of protein produced

  • Higher values indicate greater expression yield

2. Maximum Velocity (Velocity, Max)

  • The steepest slope of the fluorescence curve (at the inflection point)

  • Units: RFU per second

  • Reflects the peak rate of protein synthesis

  • Sensitive to enzyme activity, substrate availability, and reaction conditions

3. Lag Time (Lag, Time)

  • Time before exponential fluorescence increase begins

  • May reflect time for ribosome assembly or initial translation steps

  • Shorter lag times suggest faster reaction initiation

4. Drift (Fit, drift)

  • Rate of fluorescence change after reaching steady-state

  • Positive drift: continued synthesis or aggregation

  • Negative drift: photobleaching, protein degradation, or quenching

  • Units: RFU per second

5. R² Value (Fit, R^2)

  • Goodness of fit (0 to 1, higher is better)

  • R² > 0.98 indicates excellent fit

  • Poor fits may indicate noisy data, overflow errors, or non-sigmoid kinetics

Tips and Troubleshooting

  • Overflow errors: Wells with OVRFLW or NaN values are automatically excluded from fitting

  • Poor fits (low R²): Inspect raw curves for anomalies (bubbles, evaporation, pipetting errors)

  • Drift: Sometimes seen in kinetics curves; use sigmoid_drift model

  • Multiple replicates: Always include technical replicates and report error bars

  • Comparing conditions: Normalize or blank data consistently across all samples

Next Steps

  • Export kinetics results: pr.export_kinetics(kinetics, 'results.csv')

  • Statistical analysis: Use scipy.stats or statsmodels for ANOVA/t-tests

  • Parameter optimization: Vary Mg²⁺, K⁺, or other conditions to maximize Vmax or steady-state

  • Mechanistic modeling: Fit ODE models to extract biological rate constants
